Item number: X9115

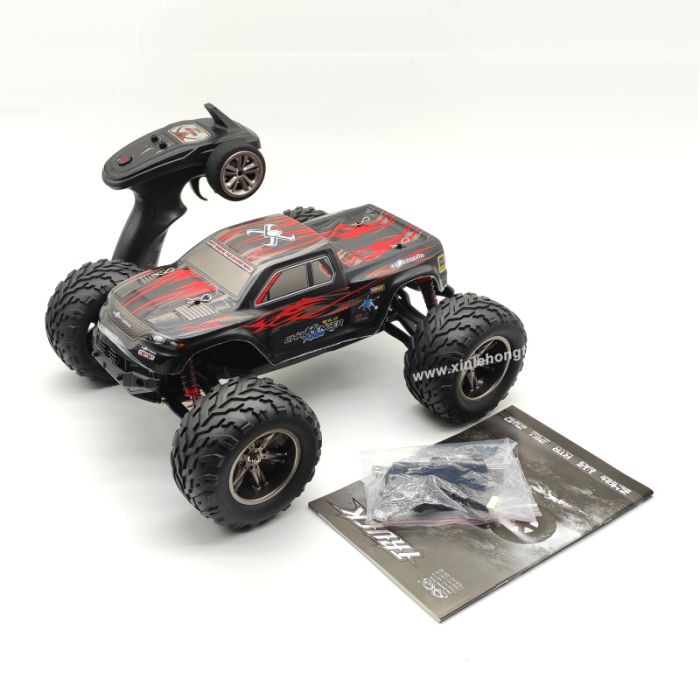

Product name: 1:12 Bigfoot high-speed model car
Color: red/blue
Ratio: 1:12
Frequency: 2.4GHz (supports more than 8 cars competing in the same field)
Product specifications: 32×26.8×15CM
Color box specifications: 41.5×28.3×16.8 CM
Speed: 40km/h
Remote control distance: 80M
Charging time: 2h
Usage time: 20 minutes
Body battery: 7.4V 1500MA Li-ion
Body weight: 1095g
Remote control specifications: 16.5×9×21CM
Weight with packaging: 2080g
Remote control battery: "AA" × 3 (not included)
Product features: "1. This charger adopts a charging voltage limiting protection device.
2. This battery adopts low voltage and over-discharge protection device.
3. This circuit board adopts overheating protection function.
4. The whole vehicle uses bearings, metal transmission shafts and transmission cups"
Frequently asked questions about cars:
1. The indicator light does not light up after the power is turned on.
Failure analysis: The battery is dead or the battery is installed incorrectly or the battery wiring is damaged.
Troubleshooting: Replace with a charged battery and check if the battery and wiring are damaged
2. Abnormal steering or failure
Failure analysis: Check whether there are any debris blocking the steering structure, or the steering components or steering gear are damaged.
Troubleshooting: Check all parts and replace any damaged or worn parts
3. Can turn, but cannot move forward or backward
1) The battery is low, replace it with a charged battery
2) The transmission parts are damaged or blocked or loosened by debris. Clean or replace the parts.
3) The ESC function is abnormal. Replace the ESC.
4. The model car makes a lot of noise when driving
Failure analysis: Check whether there are debris blocking the transmission parts, or the transmission parts are damaged or falling off, check the meshing degree of the motor gear and the large gear, check and analyze whether the differential and the large gear have teeth sweeping, chipping, etc.
If this happens, if the fault is not eliminated and dealt with in time, continued use will cause damage to the motor.
Maintenance of model cars:
1. If it will not be used for a long time, please remove the batteries from the model car and remote controller.
2. Before each use, make sure the battery is fully charged.
3. Before or after each use, carefully check whether the circuit wiring of the model car is tight and there are no loose connectors. Carefully check whether the wheels are tight. Loose wheels will cause excessive wear on components such as the drive shaft, wheel cups or wheel seats.
4. Check whether the transmission shaft gear needs lubricating oil.
5. Idle batteries need to be charged (charged to 50-60% capacity) and stored in a dry, cool place out of reach of children.
Notice:
1. The packaging color box is subject to the actual item received, because sometimes the factory will replace the packaging box with different ones.
2. Because the freight for overseas parcels is calculated based on volume, we will pack it according to the actual situation.
Sometimes we will not ship the goods in the original packaging box. We will re-modify the packaging box to reduce the size and prevent pressure.
If you mind, please don't buy.
