XinleHong 9125 Upgrade Kit-Metal Swing Arm+Steering Cup Assembly-Front Blue Color

Product details:

Parts Name: Upgrade Front Metal Kit

Package list: 1Set/Lot

Material: Aluminum Alloy

Color: Blue

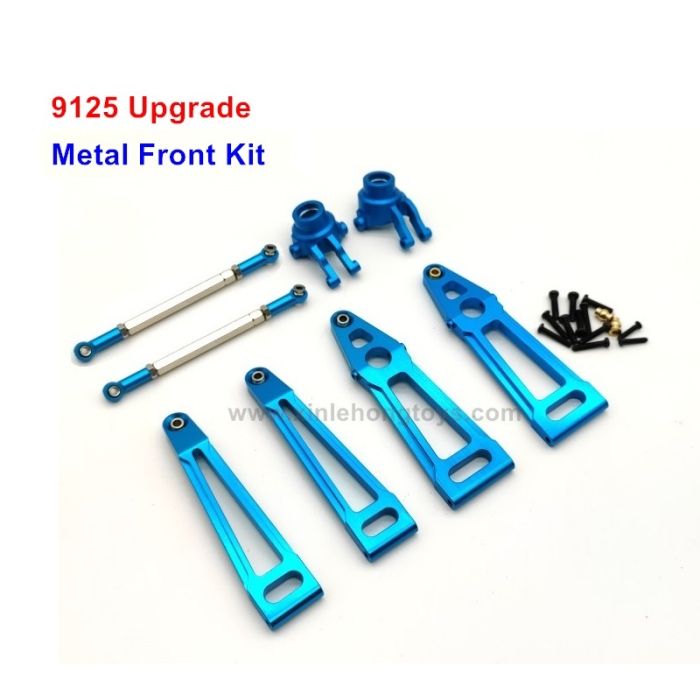

Kit includes:

1. Upgrade Metal Front Streening Cup (Left+Right) 1Set

2. Upgrade Metal Front Upper Arm 2Pcs

3. Upgrade Metal Front Lower Arm 2Pcs

4. Upgrade Metal Steering LInkage 2Pcs

Matching screws, ball head.

Applicable to XinLeHong Toys 9125 1:10 High-Speed ​​RC Racing Car.

How to install?

1. We have provided the screws needed for installation in the kit.

If some parts do not have matching screws, then you only need to use the original screws.

Please refer to the following figure for the corresponding installation position of each screw:

2. Steering connecting rod:

Before installation, please compare the connecting rod with the original connecting rod and adjust them to the same length.

the 2.5*15mm screws we provide above are for metal connecting rods.

and are not suitable for original plastic connecting rods.

If you are using original plastic connecting rods, you only need to use the original screws to install them.

About bearings:

1. Use original bearings, the matching parts do not have matching bearings. If you need bearings, please click here to buy: 15-WJ09 bearing

2. If you cannot install the bearing directly into the slot, please tap it gently with a tool.

The bearing must be installed safely into the slot, otherwise the entire rotating shaft and swing arm cannot be installed smoothly.

When installing, please note:

1. The left and right sides of the front upper swing arm are different, and there are left and right sides.

2. The left and right sides of the front lower swing arm are the same.

Before installation, please observe and distinguish the left and right to avoid installation errors.

3. The swing arm has an arc. When installing, such as the original version, the arc is facing upward.

During installation, we recommend that you do not remove both at the same time. Install one side first, and then remove the other side so that you can refer to it during installation.

Assemble it according to the picture above and install it on the car, it will be much simpler.

The effect after installation is as shown in the figure.

Please note:

1. Due to different batches, each part is produced in batches. Sometimes due to different batches, the color of the product will be different, and it is impossible to achieve 100% consistency in the same package. If you are a perfectionist, please do not buy it.

2. The colors displayed on different screens will be different. All items are subject to the actual product received.

3. Under correct circumstances, we will send the products in stock in time. If we encounter problems that need to be transferred, we will allocate them in time and send them as soon as possible.

If you have any questions, please contact us through our email so that we can reply to you as soon as possible.

Please do not leave messages on our website because the message function is not available at the moment.

How to install XLH 9125 upgraded connecting rod?

For detailed installation, please click here: Metal connecting rods installation method
